Alley Cat 1/48 Vampire F.3

KIT #: ?
PRICE: £45.00 (about $70.00)
DECALS: Four options
REVIEWER: Tom Cleaver
NOTES: Resin kit with photoetch and white metal

HISTORY

             Unlike the Gloster Meteor ‑ which was always intended to be an operational fighter ‑ the deHavilland Vampire began as an experimental aircraft, originally developed to specification E6/41, to test the deHavilland Halford H.1 jet engine. Design of what the company named the DH‑100 began at the deHavilland factory at Hatfield in mid‑1942, some two years after the Meteor began development.  Known in the company as the “Spidercrab,” the aircraft utilized deHavilland's extensive experience in using molded plywood for aircraft construction, and was the last composite wood/metal construction high performance military aircraft. To reduce thrust loss for the single engine ‑ later known as the Goblin ‑ the design centered around an egg‑shaped aluminum‑ surfaced fuselage (which had a wooden basic structure) with the rear control surfaces on twin booms to either side of the fuselage; this allowed for a short exhaust pipe which reduced thrust loss.  While the design looks strange today, at least two contemporary German jet fighter projects used a similar layout.

       The first prototype, LZ548/G, was flown by Geoffrey deHavilland on September 20, 1943, only six months later than the Meteor. Performance was good enough that the RAF supported further development as a fighter to supplement the Meteor. The production Mk I, by this time known as the “Vampire,” did not fly until April, 1945.  Almost all Vampire F Mk. Is were built by English Electric, due to the commitment of deHavilland for production of the Mosquito series.

       The first of 268 Vampire F Mk.1 fighters was taken on charge by 247 Squadron in March 1946. Improvements were introduced on the line as production progressed, with the Goblin 2 of 3,100 lb thrust introduced along with auxiliary under wing fuel tanks with the 40th airplane and a pressurized cockpit and bubble canopy from the 51st.  The centrifugal engine was thirsty, and the early Vampires suffered from having a range of only 730 miles.

       The range problem was addressed in the Vampire F Mk.3, built to specification F.3/47, which carried additional fuel in large underwing drop tanks that extended the range to 1,145 miles. The tanks caused stability problems, which were solved by lowering the horizontal stabilizer, widening its chord, and changing the shape of the fin and rudder. The prototype, TG275, first flew on November 4, 1945 and the F Mk.3 entered service with 54 Squadron in April 1948.  With the introduction of the F.B.5 fighter-bomber, which became the most numerous of the series with 485 produced, the F.3 was progressively transferred to second-line units and became the first jet issued to the reserve squadrons of the Royal Auxiliary Air Force.

             The Vampire was the first British jet to fly faster than 500 mph, and an F.3 set an altitude record of 59,055 feet.  An F.3 also became the first jet to fly the Atlantic. The Vampire was the most maneuverable of the first generation jets, with light, responsive controls, though tight banking at low speed and low altitude could be dangerous, while sudden throttle movement could cause a flame-out.

             The Vampire was the first jet flown by the Royal Canadian Air Force as well as the Royal Australian Air Force and the Royal New Zealand Air Force.  In all its 20 basic versions and over 50 variants, the Vampire served with 30 Air Forces and was produced in France under license.  It only left Swiss service at the end of the 1980s.  Several privately-owned Vampires have been flown in the United States since the 1960s, with its most famous private owner being actor John Travolta, who has owned and flown his F.3 for the past 30 years.

THE KIT

            The Vampire was first produced as a 1/48 kit some six years ago by Classic Airframes, with the first release being sadly inaccurate, though later releases were corrected in shape and outline details.  This new resin kit by Alley Cat Multi-Media Kits, a brand of A2Zee Models, is one of three Vampire kits recently produced, with the Vampire F.Mk1, and the T.11 trainer to follow in coming months. (Hobby Craft produced 1/48 Vampire kits well before C.A., though those had many shape errors. Ed)

            As with many resin kits, there is a low parts count and an excellent casting with beautiful surface detail.  All flying surfaces are thin with sharp trailing edges. First rate decals are provided for four different aircraft flown by 73 Squadron RAF and 601, 604 and 614 Squadrons, RauxAF in the early 1950s.  All are in the “high speed silver” finish, with traditional RAF and RauxAF squadron markings.  The two piece canopy is a beautiful bit of clear resin casting, as are the wingtip navigation lights.  The landing gear legs are cleanly cast in white metal.

CONSTRUCTION

            There is a bit of flash to clean up and parts need to be taken off their casting blocks, but this should present no problem for anyone who has ever built a resin kit before.  The kit design is very “modeler friendly” and assembly is so easy that a test-fitting session turned into the construction session as the kit whispered “build me....”

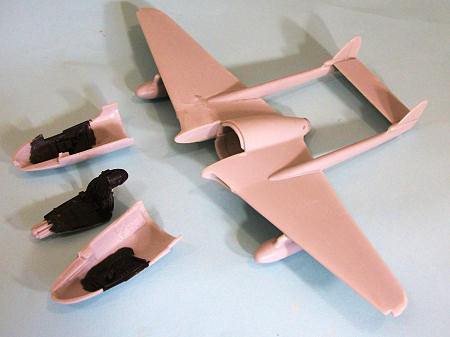

            The cockpit parts were painted black and I used Airscale Decals for the instrument panel.  The Bakelite resin seat was painted with Tamiya Hull Red to simulate Bakelite, with Red Brown for the leather seat back.  After the photoetch Sutton harness was fitted, the seat was installed and the cockpit glued into one forward fuselage half.  The metal weight provided for the nose had to be cut down and filed to fit the nose compartment.  The forward fuselage was then glued together and the other two weights were slid into position under the cockpit floor.

            The tail booms, rudders and horizontal stablizer were glued to the main fuselage-wing casting, with the tail cone cleaned out and thinned to allow the resin exhaust pipe to slide into position.

            The forward fuselage was then glued in position.  I used C-A glue to fill the centerline seam of this part, and the joint of the forward fuselage to the main casting.

            Test-fitting the canopy revealed that the canopy does not mate perfectly to the windscreen.  If you are going to pose the canopy open, this does not present a problem since the poor fit won’t be obvious.  I ended up sanding down the forward edge of the canopy to get the “blown” appearance; this was sanded out with micro-mesh and then polished, and the canopy was then dipped in Future.  With this, the canopy fit perfectly to the windscreen, thus preserving the lines of the airframe.  I would note here that a close up photo I ran across shows that there is no metal frame for the leading edge of the canopy, which is molded plexiglass and slides into a recess in the bow of the windscreen.

            I then glued the drop tanks in position and attached the white metal elevator mass balances and glued the gear legs in position so the model could sit up for painting.

COLORS & MARKINGS

            I applied a nice thin coat of Tamiya “Flat Aluminum,” thinned 50-50 and misted on, then gave the model a coat of Xtracrylix Satin varnish, which gave a final finish that closely approximates the finish of the “high speed silver” lacquer with which the original aircraft were painted.

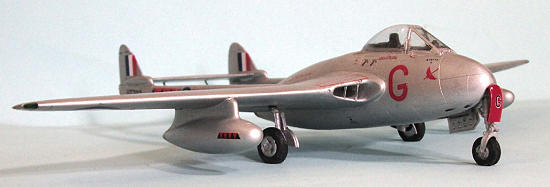

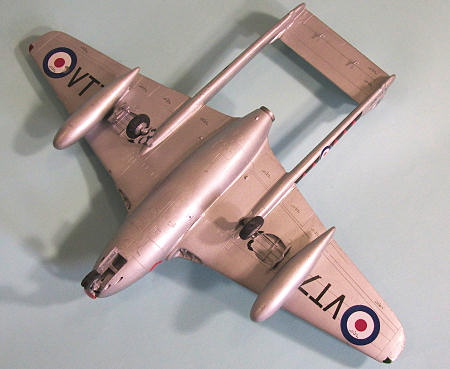

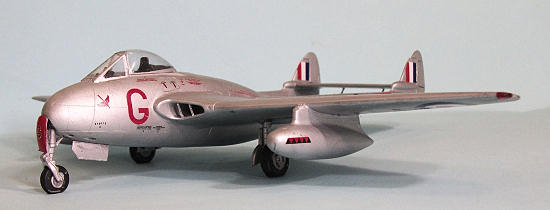

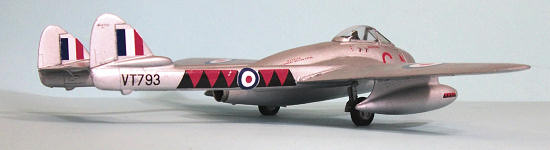

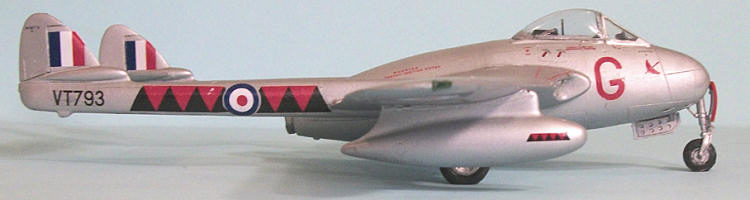

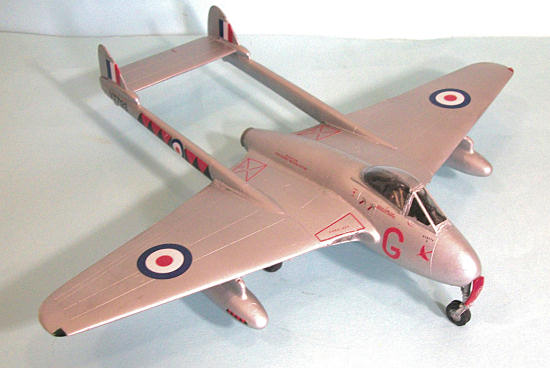

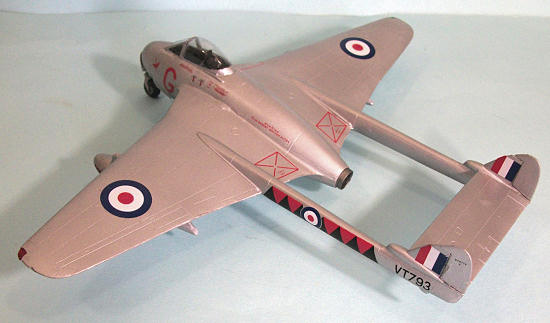

            I did VT793 of 601 Squadron, the box art illustration.  The very nice Alley Cat decals went down under a coat of Micro-Sol without a problem.

             I glued the wheels to the landing gear, attached the gear doors, and unmasked the canopy.

CONCLUSIONS

             As anyone who has read my review of the Classic Airframes Vampire knows, I was underwhelmed with that kit.  This kit from Alley Cat solves all the problems of the Classic Airframes release.  Overall quality is excellent, and the simple design assures a “weekend project.”  For those who like the Vampire, this is a sweet kit, and an excellent first resin kit for those looking to expand their projects.  I wish Alastair would consider scaling this very nice model up to 1/32.  Highly recommended for fans of British aircraft.

Tom Cleaver

February 2012

Thanks to A2Zee Models for the review kit.  Order yours at www.a2zeemodels.co.uk
