KIT:

Hasegawa 1/48 F-8E(FN) Crusader

KIT #

5924

PRICE:

3200 yen

DECALS:

Two options

REVIEWER:

Tom Cleaver

NOTES:

Cutting Edge resin and MDC decals used

HISTORY

“Le Crouze”:

      By 1962, the Marine Nationale was undergoing rapid modernization, with two new aircraft carriers, Foch and Clemenceau, about to replace the World War II-vintage US Light Carriers Arromanches and Bois de Belleau.  Somewhat smaller than the U.S. Essex class, Foch and Clemenceau were designed from the outset with angled decks and would bring the Aeronavale to a state of equality with other carrier forces.

      The Aquilon - a French-built de Havilland Sea Venom - was ready for replacement in the all-weather interceptor/fleet defense fighter role.  Unfortunately, the best carrier-based jet the French aviation industry could come up with at the time was the Dassault Etendard, which was not capable of development into a world-class air superiority fighter.  Because of this, the Marine Nationale was forced to look at foreign aircraft.  At the time, the most two most advanced carrier-based jet fighters in production and operational use were the Chance-Vought F-8 Crusader and the McDonnell-Douglas F-4 Phantom II, and both were the subject of consideration to fulfill the Aeronavale requirement.

      The Crusader was a marvel of design - a supersonic aircraft able to operate off the modernized Essex-class “34-Charlie”_ carriers of the US Navy, with performance the equal of any land-based opponent.  The contest to choose the next generation air defense fighter for the Aeronavale came down to the Crusader upon the realization that the Phantom as it then existed could not operate safely from these smaller carriers. (It should be noted that McDonnell-Douglas did eventually create a Phantom - the F-4M - which operated from British carriers of Essex size, though such operations seriously “pushed the envelope” of operational safety.) There was a single important question that had to be answered if the Crusader was to learn to speak French: could it be adapted to operation on the smaller French carriers?  Specifically, could the landing speed be lowered an additional 10 knots?

      The secret of the Crusader’s ability to operate aboard ship was its variable-incidence wing, equipped with high-lift slats, flaps and drooping ailerons, which provided the low-speed lift that allowed the airplane to come aboard Essex carriers safely.  At the time, Chance-Vought was in the process of developing the F-8E Crusader, which was considered the “definitive” production version, capable of employment as a multi-role air defense or tactical strike fighter.  This was the version the French wanted, if the airplane could be further tamed.

      The solution was to increase the angle of incidence of the wing from five to seven degrees with the leading edge slats split to provide increased camber at landing speed, with a boundary control system that blew air from the engine over the flaps and ailerons. With all this, landing speed dropped an amazing 12 knots.  Larger elevators allowed authoritative control response at the low landing speed in perfect safety.  The French originally ordered 40 single seaters of what was called the F-8E(FN), as well as six TF-8E(FN) two seat trainers;

Congressional funding for production of what was called the “Two-Sader” was not   forthcoming after the development of a single prototype.  Rather than the six trainers, the Aeronavale increased the order for single-seaters from 40 to 42. These airplanes would become the last operational Crusaders, flying operations at the end of the 20th Century, more than  twenty years after the type had disappeared completely from first-line carrier-based operations with its parent service and 44 years after the flight of the first Crusader in 1955.

      F-8D BuNo 147036 became the test airframe for the F-8E(FN), taking flight on February 27, 1964. A crash on April 11, 1964 ended its career, requiring that the first production F-8E(FN), which flew on June 26, 1964, was assigned for completion of the test program along with the third and fifth production aircraft.

      After Aeronavale pilots trained with VF-174 “Hell's Razors” at NAS Cecil Field, Florida in 1963-64, the first F-8E(FN) Crusaders arrived at Saint Nazaire October 5, 1964, to equip Flotille 12FFlotille 14F became the second Crusader unit in March 1965.  Both squadrons traded a previous Vought product, the F4U-7 Corsair, for their new Crusaders.  These two units would operate “Le Crouze” as the airplane became known in the Aeronavale until Flotille 14F was re-equipped with the Super Etendard in 1978, leaving Flotille 12F as the only Aeronavale interceptor squadron for the remainder of the aircraft’s service life.

      The F-8E(FN) arrived capable of carrying four US Sidewinder missiles, but was quickly armed with the Matra R530 missile, which was available in both infrared- and semi-active radar-homing versions; this was used until it was withdrawn from service in late 1989. In 1973, the Matra R550 Magic short range infrared-homing air-to-air missile became available for use, while the all-aspect Magic 2 became operational in 1988, and was used for the remainder of the career of Le Crouze.

      With the completion of F-8E production, the story of the Crusader might have ended.  However, the airplane was so good at what it did that what did happen was existing airframes were re-manufactured, creating even more capable Crusaders.  For the F-8E, the changes introduced in Le Crouze were so good, the U.S. Navy had theirs re-manufactured to that standard, re-entering service beginning in 1968 as the F-8J.  One of the major areas rebuilt was the wing.  In 1969, as the F-8E was being upgraded to the F-8J, the French airplanes were also provided the new wing, which led to a substantial increase in airframe life.  Additionally, throughout the 1970s and 1980s, as the F-8Js were taken out of service, they became a source of replacement wings and other spare parts, which contributed in no small way to the long life of Le Crouze.

      By the late 1980s, the aircraft was getting decidedly long in the tooth, while the projected replacement - the Rafale-M - was delayed in development.  If the Aeronavale was to maintain a fleet defense component, the life of Le Crouze had to be extended.  The result again demonstrated the remarkable adaptability of the basic airframe. The upgrade included a new zero-zero capable Martin-Baker Mk. 7 ejection seat. Additionally, the wiring and hydraulic system were replaced while the cockpit instruments were rearranged.  New avionics were fitted, including a radar altimeter, IFF, ILS, and VOR to improve all-weather flight capability, and the gyroscopic navigation system of the Mirage F1 was adopted. A Thomson-CSF SHERLOC radar warning receiver was mounted in a vertical fin extension. The first upgraded F-8E(FN) was completed in June of 1992, and by September 1994, 12 aircraft had been modified, now known as the F-8P (Prolongé/Prolonged).  The first F-8P, number 35, performed its carrier compatibility tests aboard Clemenceau in early 1993.

     Le Crouze never saw combat during its Aeronavale service, though they did see service in war zones.  In October 1974, based aboard Clemenceau, and in May-June 1977 aboard Foch, Flotille 14.F participated in Operations SAPHIR I and II over Djibouti in what was then French Somalia. On May 7th 1977, two F-8s from 14.F were to engage in air combat maneuvering with F-100s of 4/11 Jura from the Djibouti air base. The leader intercepted two fighters and engaged, quickly calling his wingman for help when he realized he’d engaged two Yemeni MiG-21s!  A tense standoff ensued before the MiGs broke off the engagement to cross the Red Sea back to their base. This would be the only combat interception by Le Crouze.

      On September 7th 1982, F-8s of Flotille 12F embarked on Foch for Operation OLIFANT IV, in response to the crisis in Lebanon; they returned for OLIFANT XVII on September 2, 1983 to cover the landing of French troops in Beirut, and again for OLIFANT XX on January 25th 1984, during which the F-8s flew top cover while Super Etendards attacked gun positions in retaliation for terrorist attacks on French targets in Beirut.

      In October 1984, Foch participated in Operation MIRMILLON off Libya, in response to tension in the Gulf of Sidra.  In 1988, as a result of escalating conflict between Iraq and Iran in the Persian Gulf, Clemenceau took part in Operation PROMÉTHÉ to protect international shipping from attacks by Iranian speedboats from July to September. Iranian aircraft were intercepted on several occasions, though none escalated to actual combat.

      The 12 F-8Ps would see considerable operational service in their final years. In 1993, both Foch and Clemenceau took part in Operation BALBUZARD over Yugoslavia.  Le Crouze operated over the Balkans again in 1995 during the intervention in Bosnia-Herzogivina.  The final operational missions came in June 1999, during Operation TRIDENT over Kosovo, F-8P No.35, the first F-8P being the last Crouze to be launched on a military mission. By then, the twelve remaining Crusaders were so old and fragile that they required 67 maintenance man hours (including major maintenance visits to Cuers) for each flying hour.

      Le Crouze ended 35 years of service during Operation PEAN 99, flying from Foch from October 4-28, 1999.  The final landing aboard Foch occurred October 28th 1999 at 12:45pm, when Lt. Denis landed F-8P No.34; the final take-off came that evening when Squadron Commandant Guillot took off in F-8P No.11. After 140,000 hours of flight time, including 25,000 carrier landings and take-offs, the last operational Crusaders - No.7, 10, 11, 34, 39 - were retired just short of the turn of the Millennium on December 15, 1999, at NAS Landivisiau in Brittany.  No other modern jet has served so long in first line service as the Crusader, which first entered service with the U.S. Navy in 1957, 42 years before her final retirement. (Just to set the record straight,  the A-4  also entered squadron service in 1957 and the F-4 in late 1960. Since both of them are still front line equipment with a number of air forces, I'd think that one of those two will be 'fighting it out' to see which lasts the longest. Ed)

THE KIT

      This Hasegawa F-8 is the first Crusader model to come with the ability to build the model in the landed configuration (i.e., wing raised, slats, ailerons and flaps lowered) "out of the box".  According to several leading "rivet-counters," this kit has the most accurate overall shape of any Crusader kit, as well as having an accurate landing gear.  As modified for release as the F-8E(FN), the kit has the radar warning receiver mounting for the vertical fin, as well as the differing launch rails for the Matra R-530 and R-550. As well as the missiles.  Additionally, the leading edge slats are split.

      To me, the two bad things about the kit are both involved with the cockpit.  For starters, as designed, it is impossible to fit the canopy in the open position, due to an inaccuracy regarding the size, shape and position of the canopy "ears" and their related well on the fuselage aft of the cockpit.  The other bad thing is that the cockpit is very basic; if one is going to do the kit cockpit it is almost a requirement that the pilot figure be used to cover up the lack of detail in the seat.  Fortunately, both of these problems are easily solved. The canopy needs to have the "ear well" enlarged with its upper line raised about 1/16"; one can even leave the "small" ears on the canopy and position it correctly, though making larger ears from sheet plastic is not difficult.

      The kit cockpit as provided is not accurate for the F-8E(FN) because it does not include the MB Mk.7 seat, as well as not being all that detailed.  Fortunately, the Cutting Edge resin replacement cockpit for the F-8J provides the necessary detail, along with a Martin-Baker Mk.7 seat that is one of the best-looking resin castings I have ever seen.

      Kit decals include markings for an F-8E(FN) of Flotille 12F circa the early 1980s with large insignia, in overall light gull grey, and the first F-8P, in overall French air superiority blue, with a distinctive tigermouth marking and large squadron insignia on the vertical fin for the final operational flight.  These are the new production Hasegawa decals, and would be quite acceptable.  However, MDC has also brought out an aftermarket sheet for the F-8E (FN) that includes early Crusaders from Flotille 14.F in light gull grey/gloss white, and F-8Ps including the one in the kit decals and the last F-8P to land aboard Foch.  These are superior to the kit decals, being much thinner, and providing several other marking possibilities.  I used the MDC decals on this project.

CONSTRUCTION

      Having learned my lesson with my first Hasegawa Crusader, I resisted the urge to assemble the wing and set it aside while I worked on the fuselage.  This is because there is one area of real difficulty in assembling this kit, which involves attaching the wing in the raised position.

      Since I was going to modify my kit with the Cutting Edge speed brake, my work on the fuselage began with my razor saw. I cut out the area of the dive brake and cleaned it up.  I then painted the brake well, interior of the brake, wheel wells, landing gear, and gear door interiors with Gunze Sangyo gloss “Off-White”, a toned-down almost Ivory White that looks more realistic in the final model.

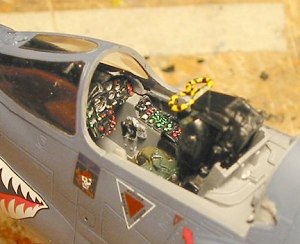

      Moving on, I painted the resin cockpit Dark Gull Grey, and detail‑painted the instrument panel and side consoles. I assembled the intake trunking and glued it in position, then attached the cockpit.  I added some weight in the area behind the cockpit ahead of the gear wells, to insure nose-sitting. With the other pre-painted parts now dry, I assembled the main gear well, and then glued in the resin speed brake, and then glued the fuselage halves together.

      Once the fuselage was together, I assembled the wing.  Having discovered on the previous model the fit difficulty with the wing in the raised position, I temporarily fitted the wing to the fuselage before I attached the slats, flaps and ailerons, and then test‑fitted them as I proceeded with assembly.  This was very important, since it turns out that the wing is most easily‑assembled in the "in flight" position, with slats, flaps and ailerons in the raised position. In fact, this is the “technically correct” position for French Navy Crusaders as they sit on the ramp, but I wanted to assemble it with the wing raised and the double-camber slats deployed, since this is the major visual difference between Le Crouze and its American cousins.

      One will have to do some re‑shaping of the inner edge of the inner leading edge slats and the inner edge of the flaps, to get both to fit without scraping against the fuselage, while being at the same time in close enough to allow the outer wing slats and the ailerons to fit properly.  While this re‑shaping will change things, it does not look apparent when the wing is finally attached to the fuselage. Once I had the wing assembly done and could remove it from the fuselage, it was time to head for the paint shop.

COLORS AND MARKINGS

 Painting:

      I pre‑shaded the two sub‑assemblies of fuselage and wing, as well as the still‑unattached slab elevators, with flat black.

When that was done, I painted the aft fuselage, with SnJ Aluminum, and airbrushed the canopy windscreen and the radome  with Tamiya "NATO Black."  When all this was dry, I masked off these areas.

      The entire airplane was painted with French air superiority blue, for which I used a mixture of Gunze-Sangyo Intermediate Blue and Blue-Grey. My French modeler friend had told me that the paint gets darker in a sunny marine environment which seems counterintuitive (to which he replied, “it’s French”, which did indeed explain everything).  I went over the surface, adding in a drop of Insignia Blue to the paint, to get the differing surfaces one needs with a monochromatic model. When this was dry I gave the model a coat of Future.

 Decals:

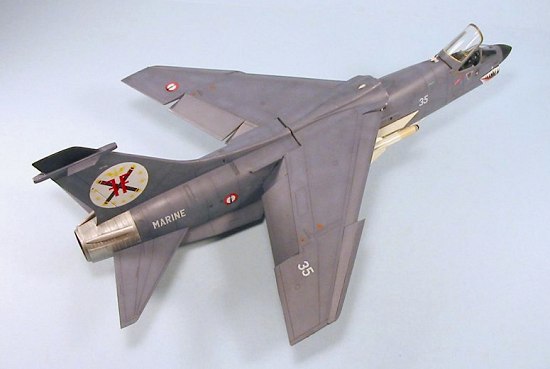

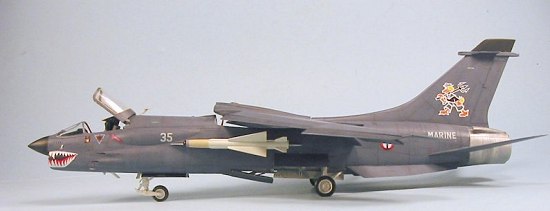

      I used the MDC Decals to do Crusader No. 35, the first F-8P, using the French stenciling markings (the early scheme has stenciling in English), in the final operational flight markings.

FINAL CONSTRUCTION

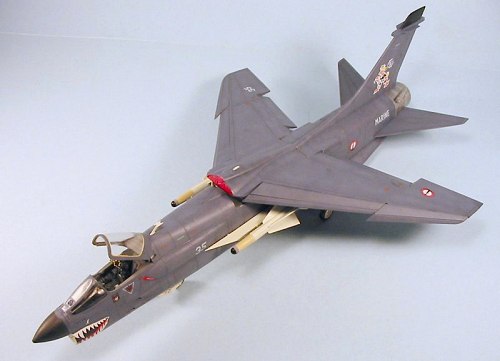

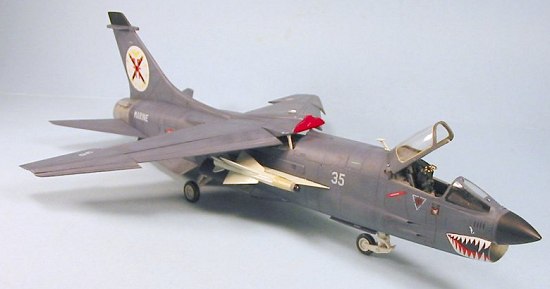

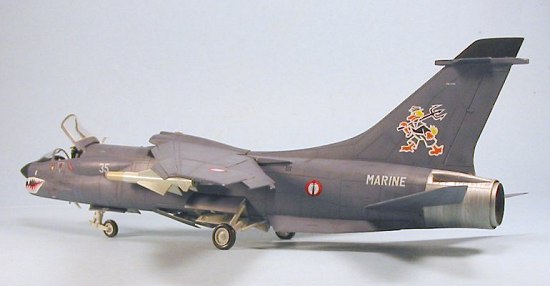

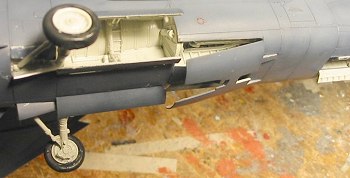

      Thanks to all the pre‑fitting done on the wing, making the final attachment of wing to fuselage was not a problem. I then attached the elevators and the landing gear. The speed brake was a bit "fiddly," but presented no real problems; photos of F‑8s show every position from slightly open to speed brake resting on the ground ‑ I chose a "middle" position, enough to see it, not enough to be in the way.

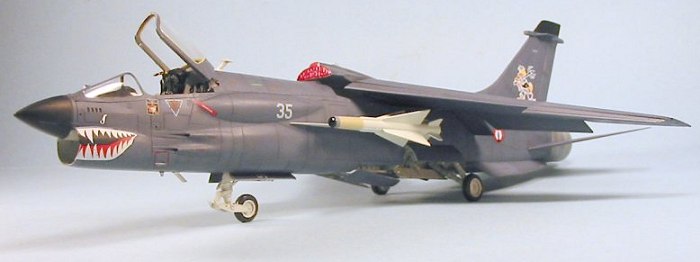

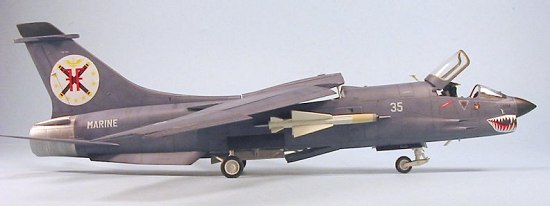

      I attached the R-550 launch rails and missiles.

      I placed the ejection seat in the cockpit and attached the canopy in the open position.  I chose not to enlarge the "ears" on the canopy, though they really are too small. It's not that apparent to the casual viewer (unless their name is Steve "Snake" Mesner, but then nothing ever gets past him); not having separate "ears" means there is one less thing likely to be broken whenever the model gets moved.

CONCLUSIONS

      This new Crusader kit makes up into a very good‑looking model.  Even with all the modifications, there was nothing that was particularly frustrating about the project (even the wing problem wasn't that big a deal).  However, if you want a really good‑looking model in your collection, this kit cries out for the Cutting Edge cockpit at a minimum.

      Highly recommended for naval aircraft fans.

 Thanks to HobbyLink Japan for the review kit. ( www.hlj.com )

 Thanks to Meteor Productions for the aftermarket sets and decals ( www.meteorprod.com )

 Thanks to Hannants for the MDC decal sheet.

REFERENCES
