Blue Max 1/48 Pfalz D.XII
KIT #: BM 107
PRICE: $ Currently OOP
DECALS: Two options
REVIEWER: Kyle Bodily
NOTES: Short run kit with cast metal parts.

HISTORY

The D.XII was a very good aircraft, however it was not as maneuverable as the Fokker D.VII.  The Fokker was a stellar aircraft and the Pfalz was never designed to do what the Fokker could.  However, when it was not handicapped by second rate engines, it performed the tasks that it was designed for in spades.

 With the engine it was designed for the Pfalz D.XII could out climb, out dive and was faster than the Fokker D.VIIf.  This was because of the wings.  The wings were relatively flat and thin like the French SPAD VII/XIII and the British SE.5.  In fact it was the SPAD’s wing that influenced the Pfalz company to design the D.XII wings.  The thicker Fokker wing allowed the Fokker to create more lift.  But as you increase lift you increase drag.  The trade off was that the Fokker was more maneuverable than the Pfalz.  The Fokker fit the underlying German aviator’s philosophy of preferring maneuverability to speed.  Since the Germans didn’t often cross the lines into Allied airspace as often as the Allied aviators crossed in to German airspace, the advantage of being able to break and run for your lines was not as important to the Germans.  The Allies preferred speed over maneuverability.   With speed you could accept or refuse battle at will and in the event things started to turn bad for you, you could break and run.  Return to fight another day, so to say, when luck looked on you with less of a grimace.

 Oddly with this philosophy, Allied pilots who flew the Pfalz D.XII after the war liked it and some felt it was even a better aircraft then the Fokker D.VIIf.  Arch Whitehouse makes this point quite well in his book ‘THE MILITARY AIRPLANE, its history and development’.  He further postulates that had the war gone on for another six months that the Pfalz D.XII would have likely over shadowed the Fokker D.VIIf all together.

 Pfalz had experience in building strong fast wings as in their earlier D.III/D.IIIa aircraft.  Pfalz aircraft were known for their speed, strength and safety, not always for their maneuverability.

 Pfalz Aircraft were on the average stronger than their flight envelopes.  This means that the aircraft’s structural limitations were inside of their power plant and aerodynamic limits.

 Make no mistake, the Pfalz D.XII was an integral part of the German air service from the spring of 1918.  But with a substandard engine, it would never perform as well as the Fokker D.VIIf and because of all the rigging it required, ground crews didn’t have a great affection for it.

 The Allies had two aircraft that followed a similar fate and did well by the end of the war.  If the war had ended on 11 Nov 1917, the Sopwith Camel and Se-5 would have been remembered in much the same way as the Pfalz D.XII is.  It took that extra time, that one more year, to work out the bugs and refine these aircraft into the excellent aircraft that they are now remembered as.

THE KIT

This is the old Blue Max kit and is out of production.  Since the new Special Hobby kit came out you can pick these kits up for a good price.  It is a good kit that builds into an excellent looking model.  That being said it is a limited run kit and as such, will not fall together.

 Blue Max/Pegasus kits are from England. They do only short run kits of aircraft no other companies are doing or are likely to ever manufacture.  However since World War One has gained in popularity, more and more companies are doing the same kits.  Kind of like the way you see so many of the same P-51s, Bf-109 and Spitfires from different companies.

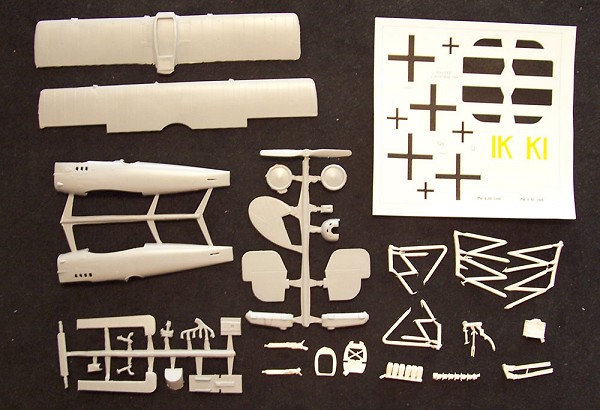

 Blue Max kits are made with low pressure-molded plastic so it is softer than you may be accustomed to.  The little detail parts are cast in pewter. The detail level on the plastic parts is good and crisp with a little flash but no real problems.  They also do not have pull down detail on the wings “hills and valleys” seen on fabric wings.  But this is very hard for a model company to do correctly.  They did do the pinking strip detail, “rib tapes”, the detail makes the pinking strips almost the thickness of your thumb.  But that is pretty much the way of things.  Model companies ether use too much or too little detail for wings.  However on a side note, Roden is making an excellent effort reproducing wing detail correctly.  If you get the chance, you owe it to yourself to take a look at the most recent wings that Roden is molding; they are in a word, exquisite.

 The pewter parts are well done with a small amount of mold flash. All the parts are packaged in a small zip-lock bag. Some of the struts and littler parts were bent from shipping but were easily bent back into the correct shape.

 The metal parts are the guns, gun troughs, all the struts, engine cylinders, radiator, cockpit bulkheads, cockpit controls and tailskid.  The injected parts are the larger parts including the remaining parts to build the engine.  The softer plastic allows you to cut and reposition the control surfaces easily if you wish to do so.

 Instructions are spartan, a single sheet with an exploded view of all the parts. You will need to get a reference book or do some searches on the Internet to see how to build the cockpit and get a better idea of how the aircraft looked.  Even a set of three view drawings and a cutaway of the cockpit and engine would be very helpful here. No rigging diagram is provided.

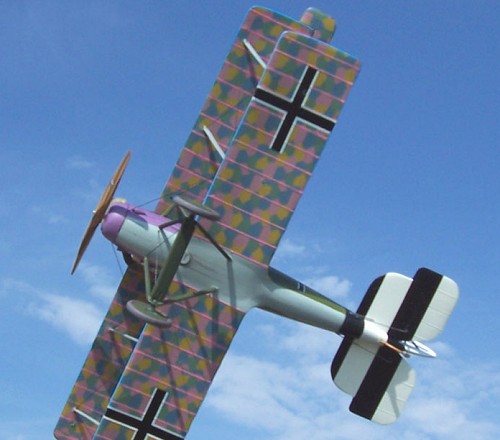

The instructions have color information and some decal instructions. Color info is provided in FS, Methuen and Xtracolor. It is highly recommended that the Windsock Datafile on this plane be used during construction. Decals are provided for the insignia and special markings.  Lozenge decals are not provided.  So, you will have to get some from an outside source. There are a lot of after market lozenge decals out there and most hobby shops seem to have a set in their decal section.

CONSTRUCTION

I removed all the parts from the sprues and cleaned them up.  BE VERY CAREFUL DOING THIS!!!  The Blue Max plastic parts are soft and the likelihood of damaging them is high if you don’t take your time.  I like to use an exacto saw for this.

This is a limited run kit so you will have to fiddle with the parts.  I like to fit as many of the parts as I can before I paint.   This reduces the amount of touchup that I will have to do later.  I built the cockpit, glued it in to the fuselage then put the two halves together.  I attached the bottom wings and used a little putty here to make this joint smooth.  I assembled the engine and fit it in to the body then painted it and glued it into place.  I masked off all the openings and painted the model.  The wings were covered with decals and the pinking strips  “rib taped” were drawn on with a paint pen.

 I always drill all the holes for the rigging prior to final assembly since it is more difficult to drill them after everything is together.

 Happily as I started the final assembly the parts went together well.  The struts were a help; since they are cast metal they are very strong and add tremendous strength to the model.  This also turned out to be the most difficult part of the build for me.  Since the struts are metal you need super glue to assemble them and super glue doesn’t give you the ability to adjust the parts very much.  So I just did a lot of test fitting here and things worked out fine.  I like to rig before I put on the undercarriage.  At this point it is just one more thing that can get in the way and make life miserable.  We don’t want that.

 Well at this point on went the undercarriage, tailskid, propeller and any final rigging.

COLORS & MARKINGS

The instructions have color information for two aircraft and decals for Pfalz D.XII 2454/18 Jasta 35 and Pfalz D.XII 2486/18 23b.  The decals are of good quality and should work well.  Blue Max recommends that the Windsock Datafile on this plane be used during construction and I recommend it also.

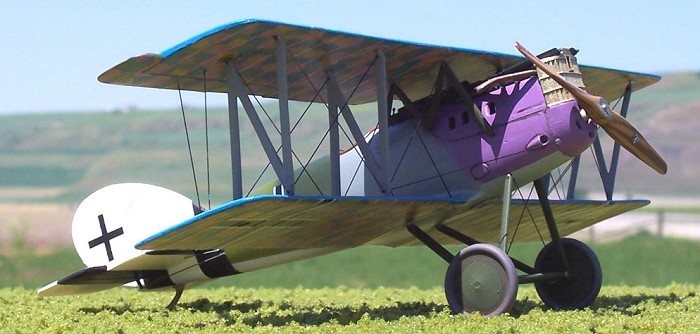

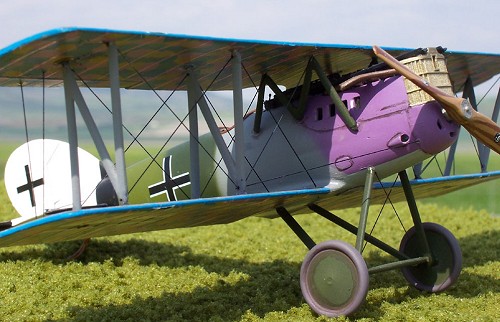

I built Pfalz D.XII 2486/18 23b flown by Leutnant Paul Vogel September 1918.  He was shot down and killed in this aircraft.  The aircraft was recovered by the British and extensively analyzed.

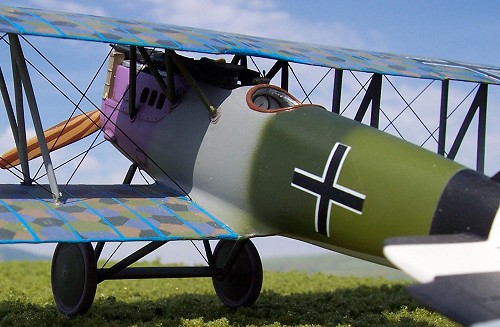

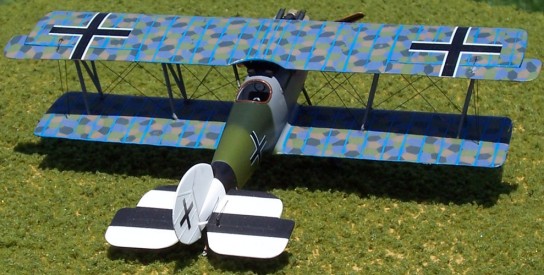

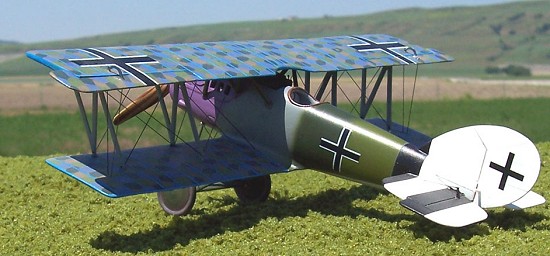

 The internal parts were all painted a very light gray.  Pfalz aircraft were sealed with pigmented dopes while Albatros used clear dopes.  You will see wood grain on an Albatros but you won’t see it on a Pfalz.  The fuselage was painted the uniquely Pfalz camouflage bands.  If you don’t get the datafile you can use the box art to determine your colors and placement.  I hand masked the tail to get the stripes and masked off the bottom before I painted it light blue.

 I like the way that masked surfaces look over decals, so I hand masked and painted the tail.

 I used the same process to apply the lozenge decals as I did with my 1/72nd  scale Toko Pfalz D.XII.  In fact this model is just a 1/48th scale version of the same aircraft.

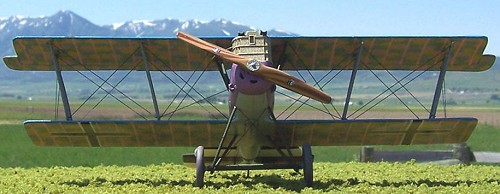

  I like to paint the lamination on the propeller by hand as opposed to carving one out of wood.  It is just two shades of wood to represent the look of some propellers.  Then it gets a very glossy finish.  That is about it for the build.

CONCLUSIONS

While not the easiest model kit I’ve ever built it would definitely fit in to the moderate difficulty level or class.  I built it completely out of the box, except for after market decals and an instrument gauge for the cockpit that came from a left over piece of film used on an old Eduard kit.  I think the build would have been substantially easier if Blue Max would put more information in their kits, just beef them up a little more.  Step by step processes would help a modeler with less experience to produce an excellent model.

I think that WWI aircraft are deceptively difficult and that people get in to trouble when they think that they are in for a Mustang Messerschmitt Spitfire type build.  In other words, WWII and Modern aircraft are like apples and WWI aircraft are like oranges.  I don’t think you can compare a WWI build to a WWII or Modern build.  To say that any WWI kit is as easy as a Mustang Messerschmitt Spitfire type build is like saying that this orange is just like this apple even if it is the best orange in the world, it is still an orange.  If all you’ve built is WWII and Modern, then building WWI may be difficult even unpalatable at first.  But try an orange again with an open mind and taste it for what it is.  I think that you will like WWI subjects as much as I do, who knows maybe you’ll like them even more.

August 2005

REFERENCES

 “Windsock Datafile #41 Pfalz D.XII” Albatros Productions LTD
“Jane’s All the Worlds Aircraft 1919” (Jane’s Fighting Aircraft of World War I)
“The Ministry of Munitions Report November 1918”
“The Pfalz D.XII Profile Publications #199” Profile publications Ltd.

“THE MILITARY AIRPLANE it’s history and development” By Arch Whitehouse, Doubleday & Company, inc.
