Dragon 1/35 7.5cm Pak40/4 Auf RSO mit Allwetteruerdeck
KIT #: 6679
PRICE: $56.00 yen SRP
MARKINGS: Four options
REVIEWER: Scott Van Aken
NOTES: Smart kit

HISTORY

By 1943 infantry anti-tank units at the front complained strongly that it was almost impossible to move their guns using trucks at daylight under enemy fire, leading to enormous losses of equipment during emergency relocations (at the time a euphemism for withdrawal), and their opinions reached the top ranks. OKW explored a previously considered proposal to fit the 7.5 cm PaK 40/1 anti-tank gun - by then the standard Pak used by the Wehrmacht - on top of an RSO chassis. After seeing the blueprints, Hitler ordered a limited production run for combat testing, before the prototypes were completed.

The project was carried out by Steyr. The suspension of the RSO remained unchanged, but the front driver's compartment was replaced with a low, lightly armoured superstructure. The result was a lightweight, cheap to produce, and highly mobile infantry anti-tank weapon. It was more exposed compared to the conventional panzerjagers which had a construction cost many times that of a RSO/PaK 40.

Although the vehicle was intended for use by the infantry anti-tank units, all pre-production vehicles were issued to armoured units (Panzer Jager Abteilungen 743 and 744, and 18th Panzergrenadier Division), due to the urgent need for replacements. Their low speed and light armour inevitably resulted in problems for these units trying to cooperate with those in other fighting vehicles. The German Army Group South, where the units issued for combat testing, declared the vehicle useful, and large-scale production was quickly authorised.

Despite the decision to have Steyr shift its entire production line into RSO/Pak 40, no specific order reached industry, and only the approximately 60 pre-production vehicles were ever manufactured. While the first vehicles were rolled out from the production line, Steyr started testing an improved version that incorporated a wider chassis and tracks; these changes improved cross-country performance and lowered the center of gravity, an issue in a vehicle of such a high ground clearance.

None of the improved version ever reached the front. In October 1943, Steyr was ordered by the Ministry of Munitions to cease production of any type of tracked vehicles. By then a new up-gunned version of the widened chassis had been designed and was planned to enter production in 1944; it had a more powerful and less noisy V8 petrol engine to carry the 88mm Pak 43 L70 gun, by far the most powerful anti-tank weapon of its era designated PzJag K43. It is doubtful if any had been constructed by the end of the war.

THE KIT

Back about four years ago, Dragon released the base kit with the PaK 40 in kit 6640. Here is a brief rundown on that kit:

 Looking at the box art shows that this isn't a large vehicle. However, it is large in terms of detail. Of the 450 parts, a quarter of them have to be part of the individual track link suspension. Then the kit has a complete engine and detailed chassis. This detail extends to the PaK 40 gun and the complete driver's compartment, so you are definitely getting a lot for your funds. You'll find few options on this one aside from being able to mount the gun in the fighting or travelling position and there are some areas where one can substitute plastic bits for photo etch ones. I'll let Dragon cover the rest.

- Hand wheels included on new gun mount tooling
- Newly designed circular base plate w/molded locking holes and pin
- Delicate and realistic new engine provided
- True-to-scale gun shield w/newly produced armored plate
- Brand new Magic Track

- Two types of travel lock included
- Cannon can be freely posed at different angles
- Connecting bracket for gun mount
- Vertical brackets for mounting circular base plate
- One-piece chassis and upper hull w/accurate thickness and details
- Accurate lower hull
- Fine pattern molded on base of tanks
- Detailed control panel for driver's compartment
- Two seats for gun platform included
- Detailed fighting compartment realistically produced
- Gearbox accurately replicated
- Side wood panels can be opened/closed for travel or combat
- Detailed suspension included
- Delicate road wheels
- Separate road wheels w/photo-etched details mounted in pairs
- Detailed flatbed realistically presented
- Ammo storage accurately depicted
- Accurate bolted-on two hook
- Transmission realistically presented
- Workable gun breech
- Three kinds of 3-D designed muzzle brake option
- Gun shield w/photo-etched detail
- Muffler w/exhaust pipe accurately produced
- Ammo case is included

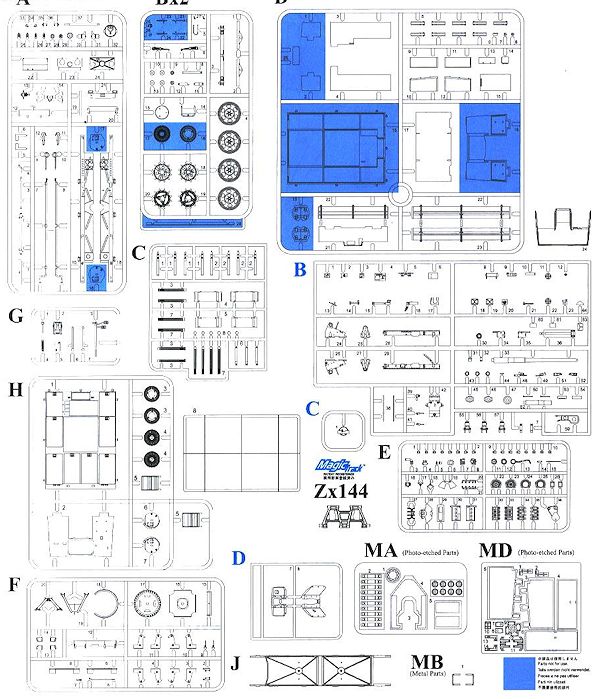

What this kit adds to the mix is the canvas cover. This is a single piece and can only be build fully erected. There is also a new ammo locker piece and several other bits that are shown in sprue H.

Four vehicles are portrayed in the instructions. Two are from unknown units on the Eastern Front in 1942/43 with one in panzer grey and the other in panzer yellow. The other two are with the 1. Sk.Jg.Div in 1944 with one in panzer grey and the other in panzer yellow with green and brown camouflage. The latter two are shown without the canvas cover.

CONCLUSIONS

It is nice to see this one issued. For those who missed the base vehicle the first time around, you now have another chance to add this interesting anti-tank weapon to your shelves.

REFERENCES

http://en.wikipedia.org/wiki/Raupenschlepper,_Ost

March 2014

Thanks to www.dragonmodelsusa.com for the preview kit. Get yours today at your local retailer.
